Mastering the Rails: A High-Fidelity Training System

Background

In alignment with the ongoing technological evolution aimed at fostering smarter, safer, and more efficient railway operations, the integration of locomotive pilot simulators has emerged as a critical enabler of operational excellence. Responding to a specialized requirement from a prominent European OEM, our team undertook the design, development, and delivery of a full-scale static Driving Train Simulator. This initiative was driven by the imperative to enhance pilot readiness and situational awareness by training them on the simulator in Augmented Space across newly commissioned train routes.

Challenges

The project's primary challenge was the complex architecture resulting from the integration of OEM parts to custom built structure. This led to specific difficulties:

• Design optimizations and Standards: Meeting rigorous performance, safety, whilst maintaining reliability standards, weight reduction for easement of lifting & transport.
• Validation & Logistics: Validating custom Structural complexity, simulating real scenario's during sea shipment, optimization of load bearing capacity.
• Unification: Seamlessly integration of Rail OEM parts with a custom structure while preserving the overall look, feel, and quality of the final product.

Solution

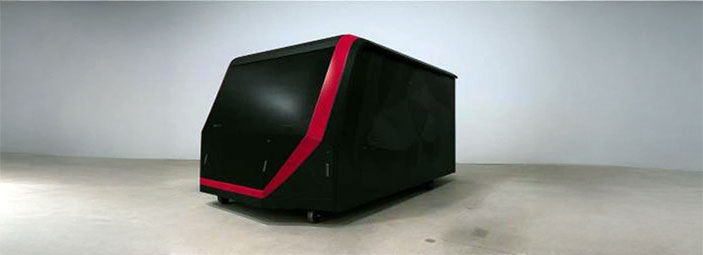

Tata Elxsi delivered a robust and end-to-end solution by engineering a full-scale static train simulator, encompassing the entire development lifecycle—from system-level requirements to final integration.

• Design Optimization: Leveraging deep expertise in structural engineering, the simulator’s custom design was refined for performance and manufacturability & assembly.

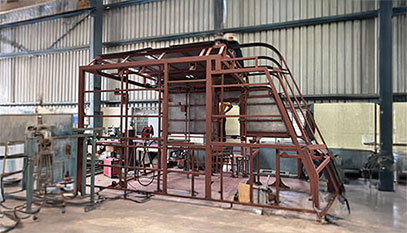

  • The tubular roof structure was optimized for efficient fitment of ceiling, HAVC & other auxiliary components.
  • Floor design was re-engineered to address lifting and load-bearing challenges. Additional optimizations included weight reduction for ease of transport and modularity enhancements for simplified assembly.
• Rigorous Validation through Simulation: The CAD design underwent extensive validation using Finite Element Analysis (FEA) to ensure structural integrity and durability under various conditions.
•  Structural Analysis: Assessment of lifting points and load distribution to ensure safe handling of the structure & the lifting jig.
• Sea shipment Simulation: Evaluated the model’s resilience to dynamic stresses during maritime shipment.
• Durability Testing: Simulated extended usage conditions to validate the simulator’s lifecycle performance.
• Seamless Integration & Aesthetic: mechanical and structural arrangements were implemented to ensure flawless integration of all subsystems. The final build maintained a high-quality aesthetic, aligning with the OEM’s brand and functional expectations.

Impact

The successful delivery of the full-scale static CAB simulator enabled immersive, route-specific training for locomotive pilots, significantly enhancing operational preparedness. Structural and design optimizations resulted in a 25% reduction in weight, improving transportability and handling. The use of repurposed materials contributed to a 20% cost reduction. Following this success,Tata Elxsi has been entrusted to deliver desktop and handheld simulators—broadening the training ecosystem with scalable, immersive solutions.

Services Rendered

• Styling
• Cab exterior design
• Fittings & Routing (Electrical & Pneumatic)
• DFM-A
• Structural Analysis
• Manufacturing & Assembly
• Process engineering
• Packaging
• Delivery
